Door trim removed showing the
speaker
recess and the wiring that feeds the window
motor from the switches

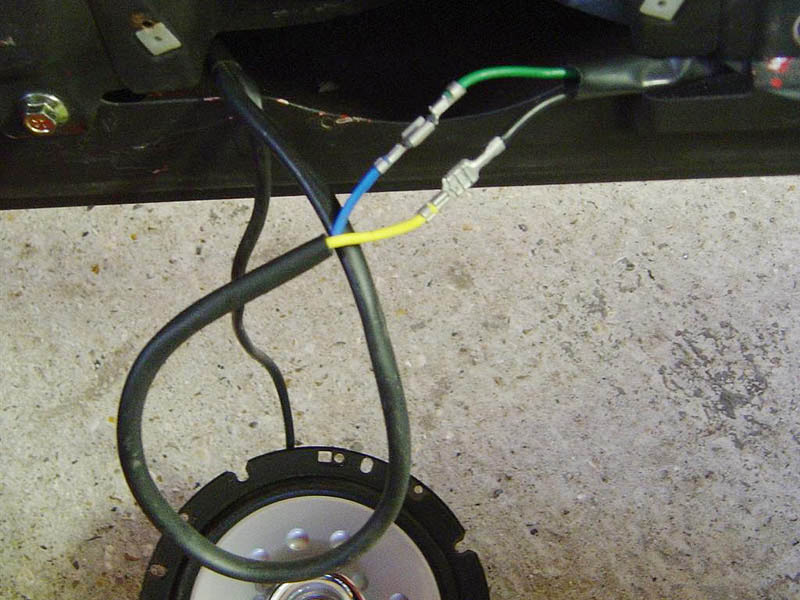

For these 2 wires remove the covers to expose
the bare connections. do not disconnect anything, leave the windows circuit
as it is, this is just
allowing for testing

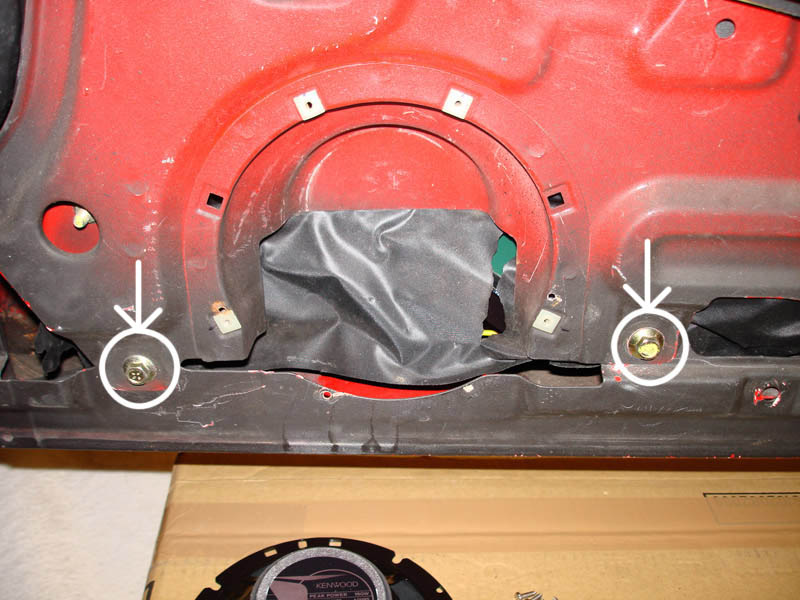

Locate a good earth point on the
door like a bolt or bare metal, making sure it is clean and free from
paint.

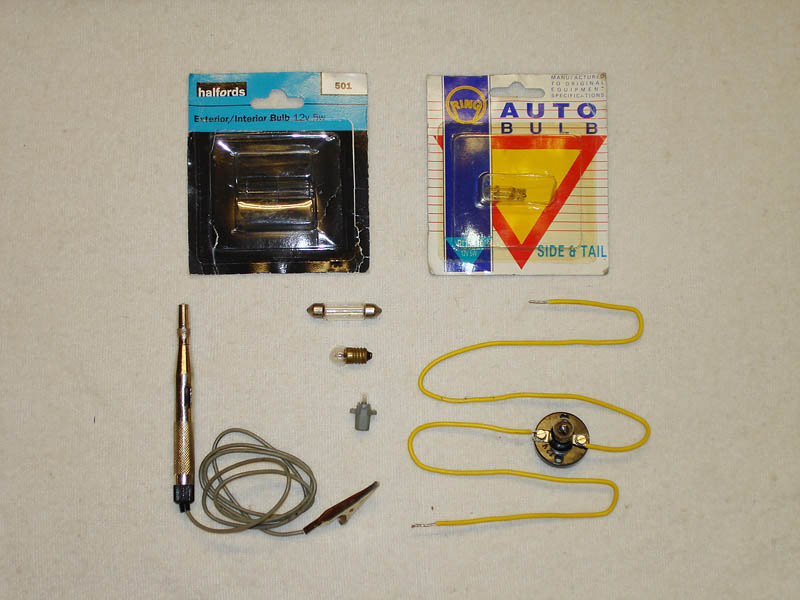

Use an automotive test lamp or find a 12v
bulb (a low wattage bulb e.g. sidelight ) and connect 2
wires to it as shown above.
Check your test lamp works first
by testing on
a battery or battery charger

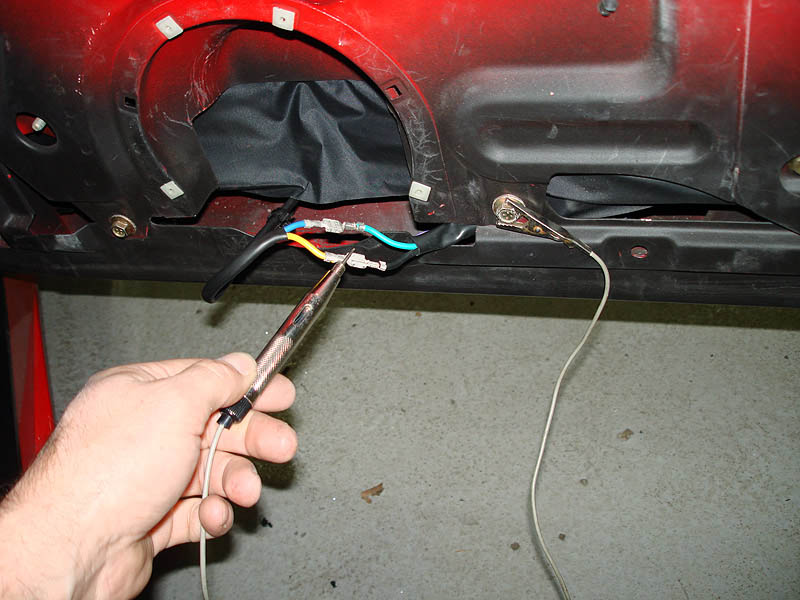

Connect one of these wires to the earth point
on the door and the other in your hand ready for the compatibly test

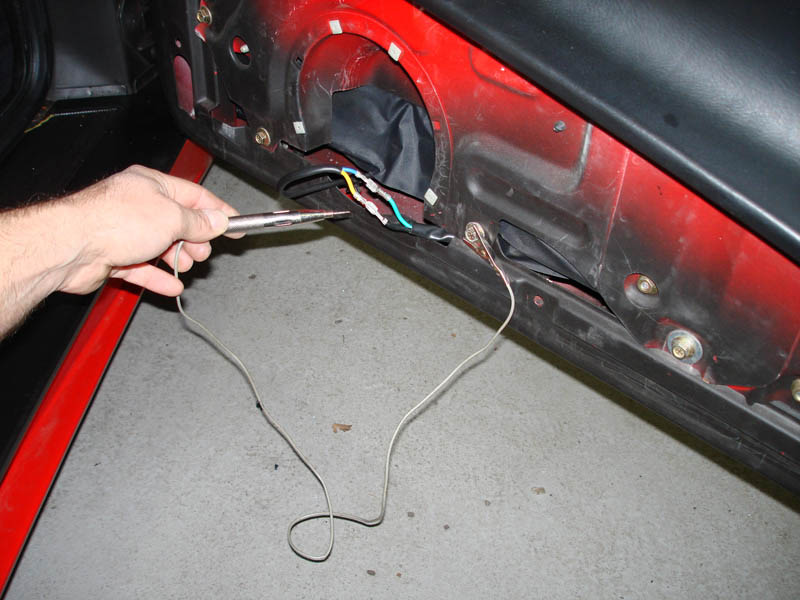

Switch ignition on and with no buttons pressed,
touch your test wire on to both of the motor wires individually. If the bulb does not light then the module is compatible with your Ferrari.

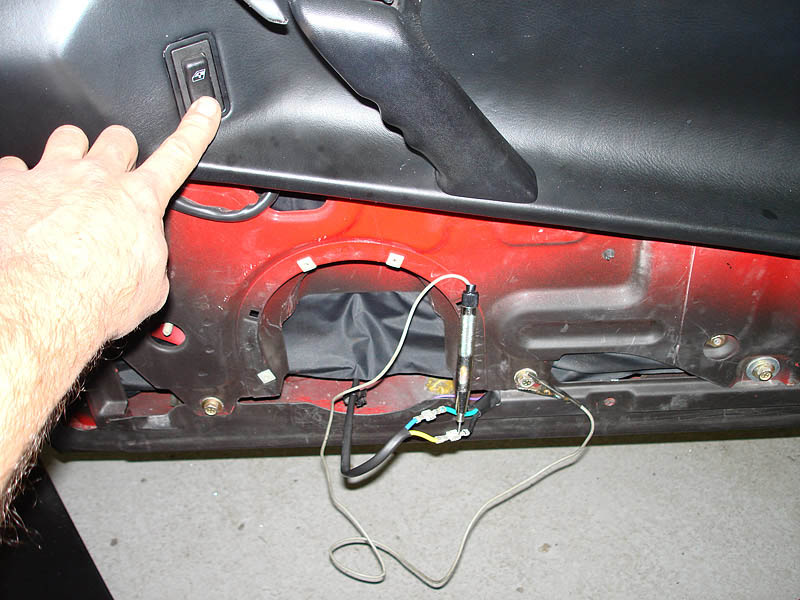

To double check compatibity and to prove your test circuit is working correctly press up on the window switch,
while the window is moving only one wire will light the bulb. Vice versa in the other direction.
If the bulb has been light
by touching either of the motor wires with no buttons pressed then
the unit is incompatible with your Ferrari “ DON'T
PANIC“. Watch
this site, a new module will be available shortly offering compatibility
for non standard vehicles.
If the bulb does not light when the buttons are pressed check the bulb
and circuit. Pay particular attention to the earth point.
