Please find below the installation guide for a 348. Installation will vary from model to model but is relatively straight forward. Please contact me for further model information.
 |
 |
 |
|

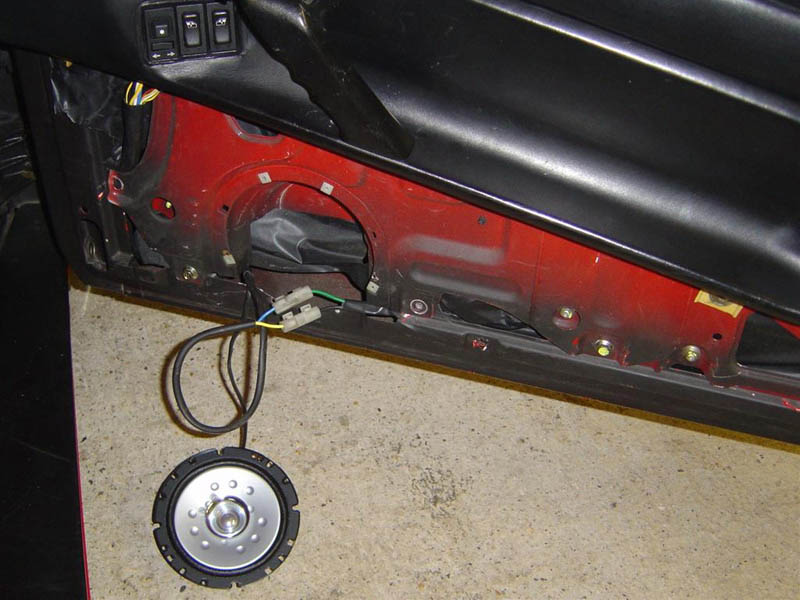

| Door trim removed showing the
speaker recess and the wiring that feeds the window motor from the switches |

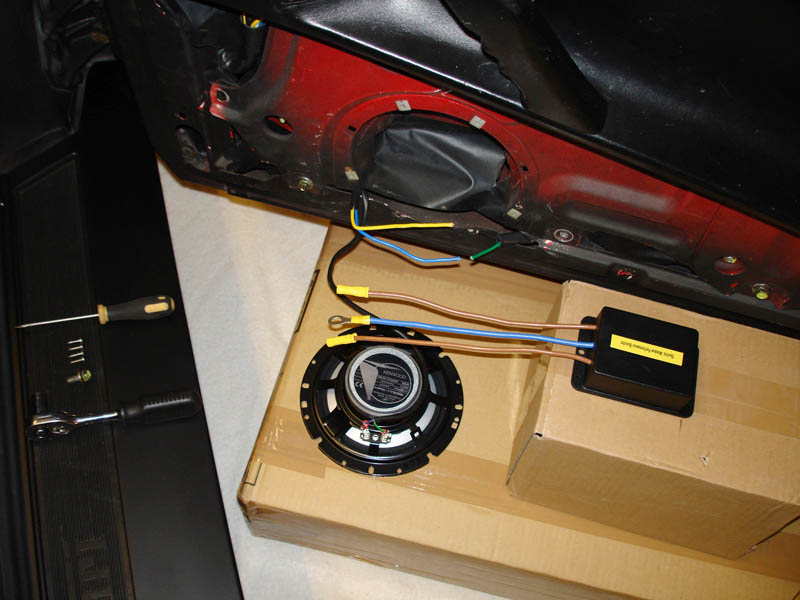

Connectors cut and removed, wires shortened
by approx 6 inches ready for the module to be connected |
 |
 |
 |
 |

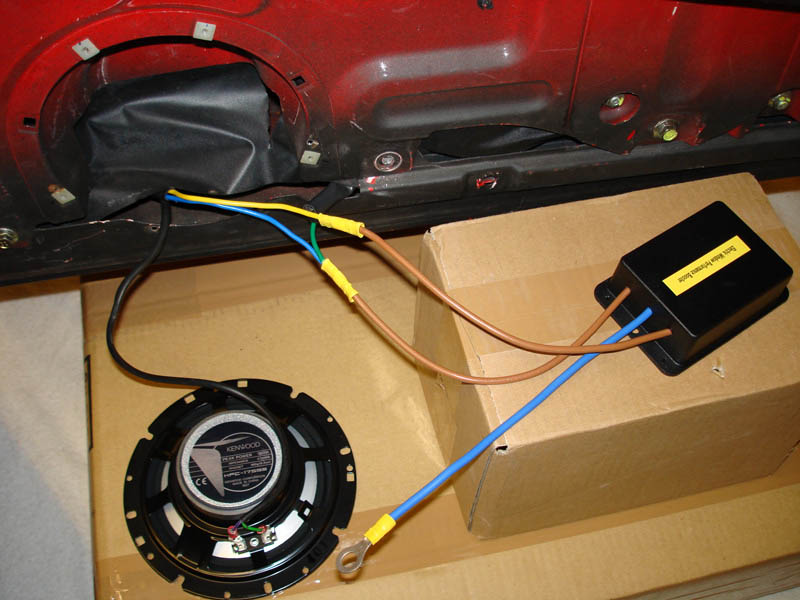

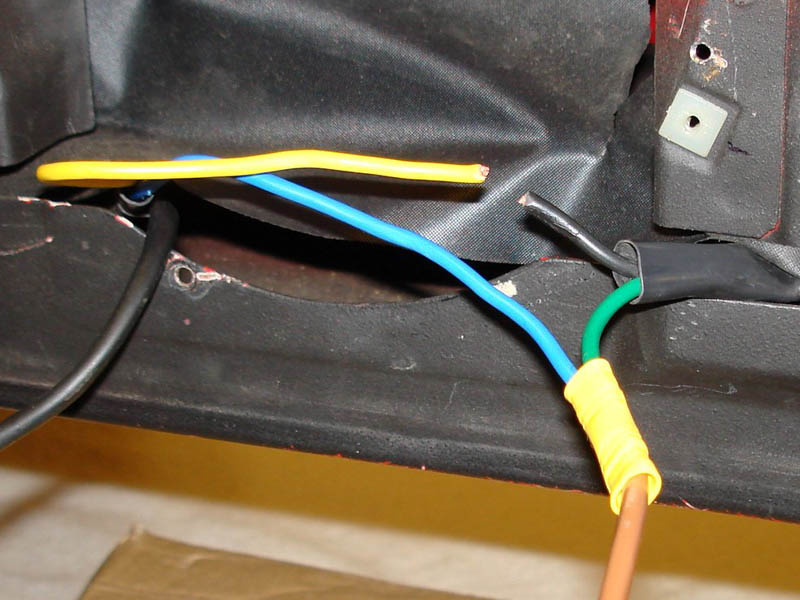

| The first brown wire is connected to the wiring which brings together the cut wires as they were | The second brown wire is connected to the wiring which brings the last 2 cut wires together again |
 |
 |
 |
 |
| Double sided tape is used to secure
the module to the base of the door |

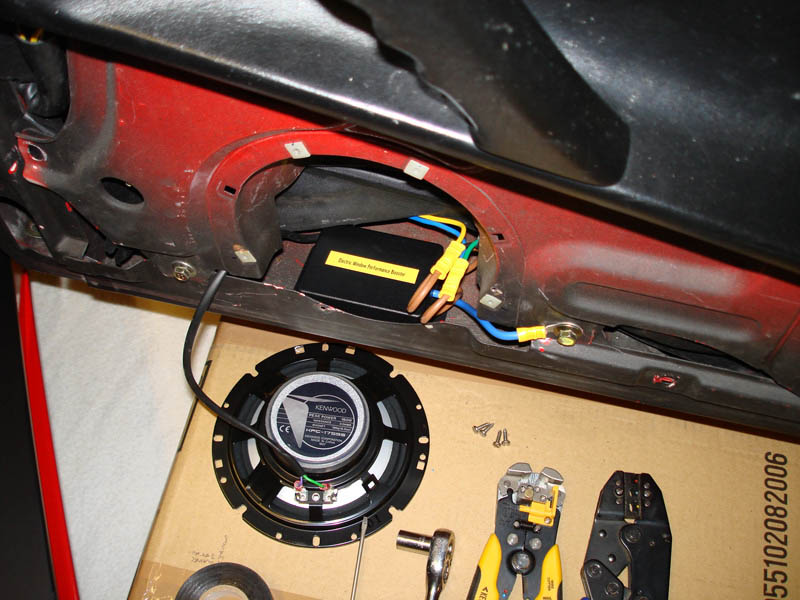

The module is secured in place and the blue earthing wire is attached to a convenient location |
